is able to handle numbered as well as unnumbered files. Qedit
determines the type of file its dealing with by looking at
specific portions of each line based on the Language of the file.
Qedit can handle up to 99,999,999 lines in regular numbered files and
999,999 lines in Cobol source files. The maximum is attained if the
smallest increment allowed (0.001) is used and all possible line
number values are present (there are no holes in the
sequence). In other words, you will be able to add new lines by
changing the increment or using unassigned line numbers. Qedit is
able to adjust the increment and renumber parts of the file as
When it comes to
line numbers, Qedit goes by the following rules. If this is a COBOL
source file, Qedit expects the line numbers in the first 6 columns of
each line. For some other files, it expects line numbers in the last
8 columns of each line. Furthermore, the first 5 lines of the file
must contain valid numbers (all numeric digits) and be in ascending
order. If one of these requirements is not met, Qedit reports a line
number error and does one of 2 things:
Assumes the file is unnumbered, assigns its own line numbers and
handles line number columns as part of the data.
Assumes there is a problem in the line numbering scheme and assigns
line numbers starting from the last valid number.
number of factors influence which option is used.
are cases where Qedit thinks the file is numbered when, in fact, the
columns contain actual numeric data. If you need to edit such files
but keep getting error messages and are not able to see the numeric
data, simply use the Unnumbered option on the Text command. In this
case, the data is used as line number which makes for an unusual list
of values. On a side note, MPEs Print command also looks for
line numbers in the last eight columns. If the output doesnt
look right, you should use the Nonum option to see if this might be
the problem. This is one of the most common questions we get on
Suprtool when people try to check the results of an extract task.
In the case
of invalid line numbers or out-of-sequence line numbers, Qedit
displays an error message and tries to recover from the error.
Lets say you have the following Cobol file on HP-UX:
Version Robelle 1.1 2003
Keep in mind
that COBOL line numbers have three decimal places so the first line
is 0.11, not 110. Its also worth noting that the default
increment is 0.1. A simple Text will get you the following error:
Language is now COBX
number out of sequence (000150)
the rest. 9050 lines in file
*VERSION Version ECOMETRYRev532:1
original line 0.15 ENVIRONMENT DIVISION. is now 2.322 (last valid
line number 2.222 incremented by 0.1). In this case, line 2.222 is
likely incorrect and should be fixed. Aside from the new numbers, the
file is intact and Qedit has been able to text it all in.
The line number on the out-of-sequence error message has been added
in version 5.4.11. Earlier versions do not provide the information
making it hard to find which line needs to be fixed.
Running Out of
say the invalid line number above (2.222) is 999.992 instead. Qedit
tries to renumber the remaining lines from that value with an
increment of 0.1.
Language is now COBX
number out of sequence
renumbering the rest
Error: Too High
23 lines in file
*VERSION Version ECOMETRYRev532:1
will run out of line numbers very quickly causing the Error: Too High
message. This error is a lot more serious than a simple renumbering.
When this error occurs, Qedit stops reading the file. Thats why
it shows 23 lines in the file instead of the expected 9,050 above.
Its very important not to keep the file.
How To Fix
Line Number Problems
really is a problem, heres how you go about fixing the line
numbers. If Qedit does not run out of line numbers, Text the file in
and use the Renum command.
are a few options when Qedit runs out of line numbers. You can force
Qedit to use a specific increment by specifying the Setincr option on
the Text command. For example, the following commands forces Qedit to
use a .01 increment instead of the default.
/Set Incr .01
that does not work, you have to see the numbers. In order to do this,
use the Unnumbered option on the Text command. Line numbers now
appear as data. Find the invalid line number displayed in the error
message (if any). If there are just a few lines to fix, enter valid
numbers where needed. If theres a large number of lines to fix,
it may be easier to remove them all with a Change command and
re-enter a valid sequence in the first 10 lines or so. Keep the file
and Text it back in.
If you get a
line number problem in Qedit for Windows older than 5.4.10, you will
not get any error. In versions 5.4.10 or later, you will get the
message shown in Figure 1.
Qedit for Windows
does not have equivalents for the Set Incr and Renum commands and
Setincr option. There is, however, an equivalent for the Unnumbered

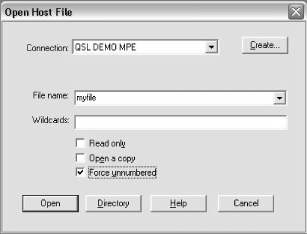

option. Just enable the Force Unnumbered option as shown in Figure 2
on the Open Host File or Directory dialog boxes.
If you do not
have host-based Qedit but have the Qedit for Windows server, you
should open the file with Force Unnumbered enabled and fix the line
Invalid Numbers Come From?
Based on our
experience, invalid line numbers come from editing files using tools
that are not line number-aware. Although this could
happen on MPE, its most often seen on HP-UX. This could be as
simple as adding lines using I/O redirection (> or
>>) on MPE or HP-UX commands. It could also be done
by more complex software such as version control packages. Often
times, the offending lines have been imported from foreign systems.
Once the root cause has been identified, it is important to document
it properly and maybe set internal standards to prevent it in the
